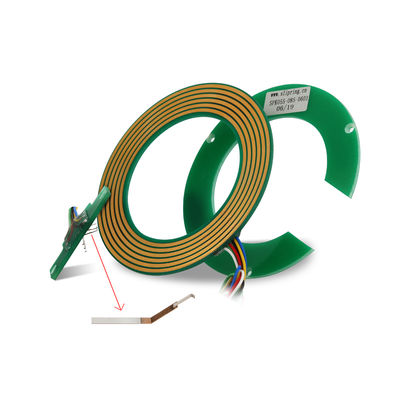

High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating

  • High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating
Lugar de origen Porcelana
Nombre de la marca JINPAT
Certificación ISO/CE/RoHS/UL
Número de modelo LPKS025-085-0205-08S
Cantidad de orden mínima 10 Uds.
Precio negotiable

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Circuitos 2 circuitos Calificación actual 5A por el circuito
Clasificación de voltaje El valor de las emisiones de CO2 será el siguiente: Material de contacto Metal precioso
Diámetro interior F 25 mm Velocidad de trabajo 0 ~ 300 rpm
Resistencia dieléctrica ≥300VDC@50Hz(corriente), ≥100VDC@50Hz(señal) Resistencia a aislamiento 100MΩ@300VDC (corriente), 100MΩ@100VDC (señal)
Material de alojamiento FR-4 Longitud de alambre Cable del estator: 300 mm, cable del rotor: 300 mm
Temperatura de funcionamiento -20 ° C ~+60 ° C Método de instalación Fijado con tornillos M2
Velocidad de rotación Alto Espesor 6mm
Transmisión de la señal rotación 360°
Resaltar

5A Current Rating Pancake Slip Ring

,

25mm Hole Size Flat Slip Ring

,

220VDC/AC Voltage Rating LPK Series Slip Ring
Descripción de producto
High-Speed 5A Flat Slip Ring with 2 Circuits 25mm Hole Size
Compact Pancake Slip Ring for Current and Signal Transmission
Bargain Price Only in Alibaba
The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, specifically engineered for rotation systems with limited vertical installation space. The innovative copper ring and brush contact configuration around a central hole maximizes space efficiency.
Key Features
  • High rotating speed capability
  • Reliable contact with lightweight design
  • Exceptionally low physical noise operation
  • Continuous 360° power and signal transmission
  • Stable connection without interference or drops
Product Advantages
  • Pre-installed photoelectric encoder
  • Choice of solid or hollow shaft options
  • Fast delivery service
  • Custom engineering solutions available
Technical Specifications
Electronic & Electrical Mechanical
Circuits: 2 circuits × 5A + 8 signal circuits Working Speed: 0-300rpm
Inner Diameter: Φ25mm Contact Material: Nobel Metal
Working Voltage: 220VDC/AC Housing Material: FR-4
Dielectric Strength: ≥300VDC@50Hz (Current) ≥100VDC@50Hz (Signal) Wire Length: Stator/Rotor 300mm each
Insulation: 100MΩ@300VDC (Current) 100MΩ@100VDC (Signal)
Environment Remarks
Temperature Range: -20°C to +60°C Installation: Fixed with M2 screws on customer's flange
High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 0
Primary Applications
  • Packaging/wrapping machinery
  • Semiconductor handling systems
  • Industrial machinery
  • Exhibit display machinery
  • Medical equipment
  • Rotary index tables
  • Process control equipment
High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 1 High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 2 High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 3 High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 4
