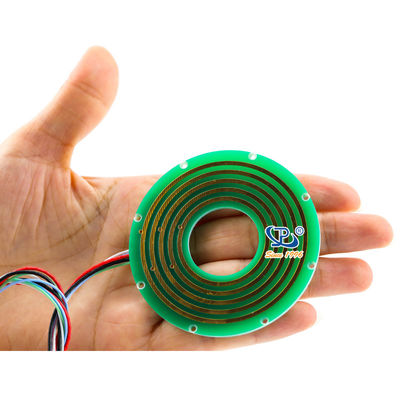

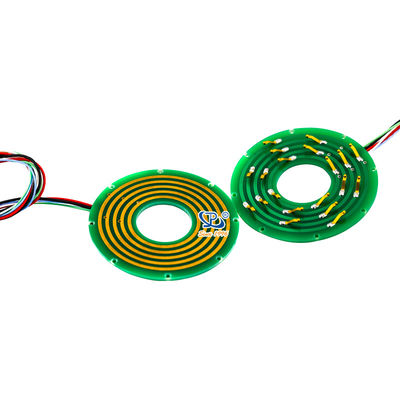

5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Circuitos | 5 circuitos | Clasificación de voltaje | 24VAC/DC |
|---|---|---|---|
| Calificación actual | 1A por circuito | Material de contacto | Oro al oro |
| Velocidad de trabajo | 0 ~ 50rpm | Voltaje de trabajo | 380 VCC/CA |
| Resistencia dieléctrica | ≥1000V@50Hz(Corriente) ≥500V@50Hz(señal) | Material de alojamiento | Negro de oxidación de aleación de aluminio. |
| Resistencia a aislamiento | 500MΩ@500VDC(Corriente) 100MΩ@300VDC(señal) | Longitud de alambre | Cable del estator: 700 mm Cable del rotor: 700 mm |
| Temperatura de funcionamiento | -20 ° C ~+60 ° C | Humedad | ≤60%RH |
| Clasificación IP | IP54 | Espesor | 6mm |
| Velocidad de rotación | Alto | ||
| Resaltar | 5 Circuits Pancake Slip Ring,360° Rotation Slip Ring,24VAC/DC Voltage Rating Pancake Slip Ring |
||
Descripción de producto
5 Circuit Pancake Slip Rings with Gold-Gold Contact Wide Range Temperature
Product Overview
The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, ideal for rotation systems with limited vertical installation space. These compact units combine copper rings and brush contacts around a central hole for maximum space efficiency.
Key Features
- High rotating speed capability
- Reliable gold-to-gold contact with minimal noise
- Continuous 360° power and signal transmission
- Stable connection without interference or drops
- Compact pancake design saves vertical space
Product Advantages
- Pre-configured photoelectric encoder option
- Choice of solid or hollow shaft configurations
- Rapid delivery available
- Custom engineering solutions
Technical Specifications
| Circuits | 4 circuits × 10A + 9 signal circuits | Working Speed | 0-50 rpm |
|---|---|---|---|
| Working Voltage | 380V DC/AC | Contact Material | Gold to gold |
| Dielectric Strength | ≥1000V@50Hz (Current) ≥500V@50Hz (Signal) |
Housing | Oxidation black aluminum alloy |
| Insulation | 500MΩ@500VDC (Current) 100MΩ@300VDC (Signal) |
Wire Length | Stator/Rotor: 700mm each |
| Temperature Range | -20°C to +60°C | Installation Method | Stator fixed on customer spindle |
| Humidity | ≤60% RH | IP Rating | IP54 |
Typical Applications
- Packaging and wrapping machinery
- Semiconductor handling systems
- Industrial automation equipment
- Exhibit display mechanisms
- Medical diagnostic equipment
- Rotary index tables
- Process control systems
Company Highlights
- 12,000+ sqm production facility with 500+ employees
- Recognized as National High and New Technology enterprise
- Holder of 69 technology patents
- 20+ years experience since 1996
- 10,000+ successful designs across industries
- Global partnerships with major enterprises
- Free custom engineering solutions
Frequently Asked Questions
What is a slip ring?
An electromechanical device enabling power/signal transmission between stationary and rotating structures, eliminating dangling wires and improving system reliability.
What slip ring types are available?
Our portfolio includes electrical slip rings, signal transmission models (USB/Fiber optic), pneumatic/hydraulic unions, and fully custom solutions.
How to select the right slip ring?
Consider your application's circuit requirements, voltage/current specifications, operating speed, and mounting configuration. Our engineers can assist with selection.
Do you offer custom solutions?
Yes, our engineering team develops tailored solutions for unique applications. Contact us with your requirements for a customized proposal.
