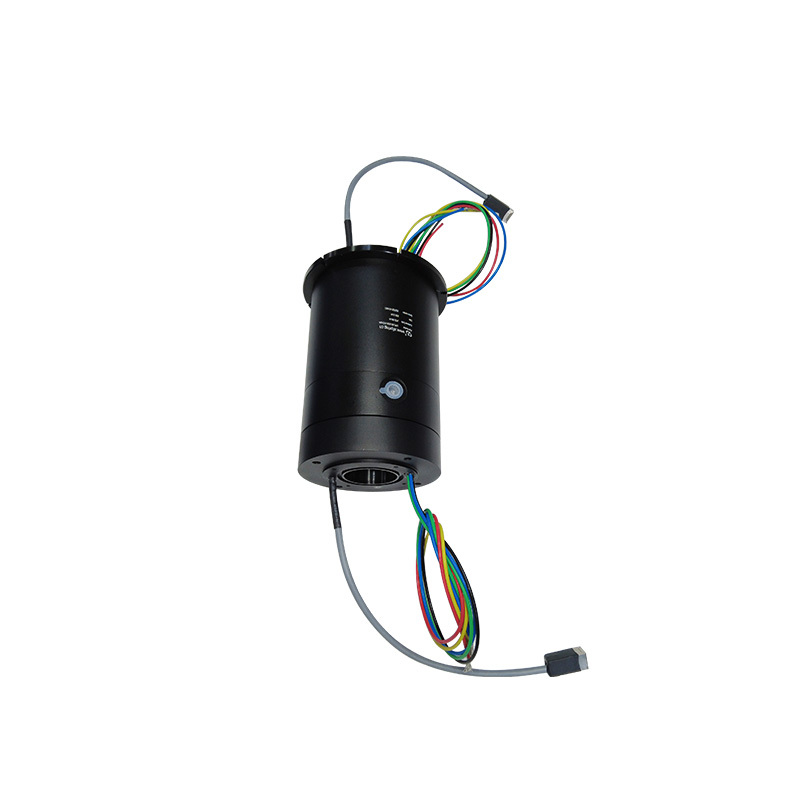

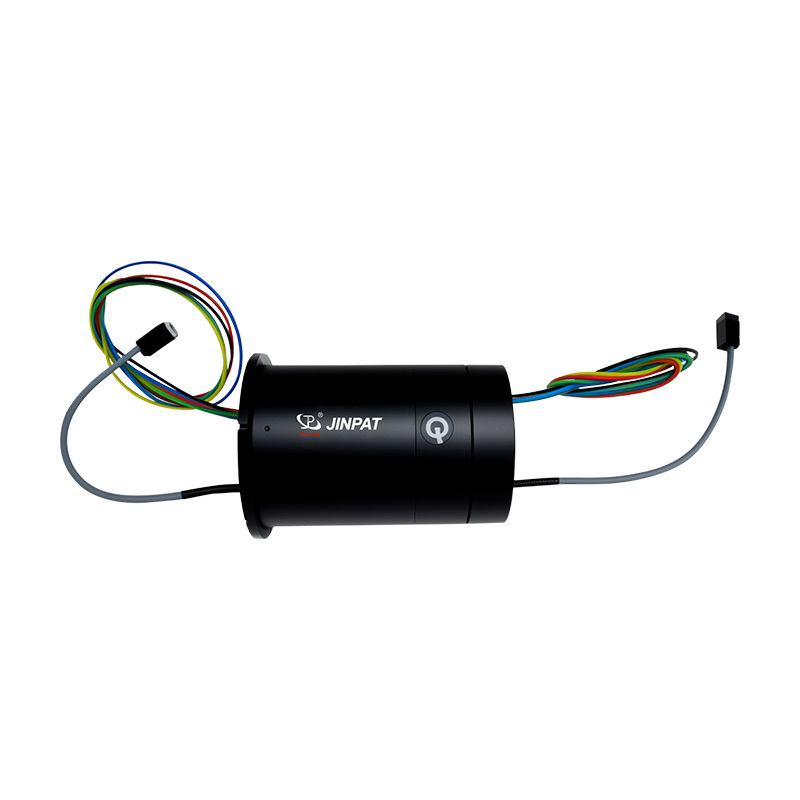

Pneumatic Hydraulic Slip Ring 30A 5-Channel with Gigabit Ethernet
| Lugar de origen | Porcelana |
|---|---|
| Nombre de la marca | JINPAT |
| Certificación | ISO9001.ISO14000.CE.UL.FCC.RoHS |
| Número de modelo | LPPL050-0530-01E3-02A |
| Cantidad de orden mínima | 1 por ciento |
| Precio | negotiable |
| Detalles de empaquetado | Estándar/en pedido |
| Tiempo de entrega | 2 semanas ARO |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 100 unidades/semana |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Corriente de anillo | 5*30a+1*Gigabit Ethernet | Material de alojamiento | Aleación de aluminio |
|---|---|---|---|
| Temperatura de funcionamiento | -20 ℃ a 60 ℃ | Tensión de calificación | 0 ~ 220 VAC/DC |
| Humedad operativa | ≤60%RH | Resistencia a aislamiento | ≥500mΩ@50Hz (potencia) ； ≥300mΩ@50Hz (señal) |
| Velocidad de funcionamiento | 0 ~ 30 rpm | Longitud de plomo | Estator y rotor ≥300 mm |
| Diámetro interno （ID） | Ø50 mm | ||
| Resaltar | Pneumatic hydraulic slip ring 30A,5-channel slip ring with Ethernet,Hydraulic rotary joint gigabit Ethernet |
||
Descripción de producto
13. Pneumatic Hydraulic Rotary Joints The Perfect Combination of Pneumatic and Hydraulic Systems
Product Specifications
| Attribute | Value |
|---|---|
| Ring Current | 5*30A+1*Gigabit Ethernet |
| Housing Material | Aluminum Alloy |
| Operating Temperature | -20℃ to 60℃ |
| Rating Voltage | 0~220 VAC/DC |
| Operating Humidity | ≤60%RH |
| Insulation Resistance | ≥500MΩ@50HZ(Power)；≥300MΩ@50HZ(Signal) |
| Operating Speed | 0~30rpm |
| Lead Length | Stator and rotor ≥300mm |
| Inner Diameter（ID） | Ø50mm |
Product Overview
The LPPL050-0530-01E3-02A is a compact pneumatic-hydraulic slip ring specially designed for lithium battery and new energy production equipment. It combines 5 circuits of 30A power transmission, 1 channel Gigabit Ethernet, and 2 integrated pneumatic passages, ensuring stable performance in demanding industrial environments.
With its compact size, low torque, and ability to operate under vacuum conditions up to -30kPa, this slip ring is ideal for modern battery manufacturing machines where space-saving design and reliable signal/power/air transmission are critical.
This advanced slip ring supports efficient data transfer, power delivery, and pneumatic integration in a single unit, offering high reliability and long service life for continuous operation. It is an excellent solution for automation systems, lithium battery assembly lines, and new energy applications.
Key Features
- 5 channels * 30A power circuits
- 1 Gigabit Ethernet channel
- 2 pneumatic passages integrated
- Works under vacuum -30kPa
- Compact design with low torque
- Designed for lithium battery & new energy production
Primary Applications
- Lithium battery equipment
- New energy production machinery
- Automation and industrial robots
- Compact systems requiring power, signal, and pneumatic transmission
Customization Options
- Placement of custom circuitry
- Special mechanical integration features
- Addition of unique components
- Inclusion of coax and miniature data bus cables
About JINPAT
With 30 years of slip ring manufacturing experience, JINPAT operates from a 7000 square meter facility with professional R&D teams, advanced equipment, and over 300 skilled employees. Our products are recognized as leading brands in Europe and North America, meeting diverse specifications with durable, reliable quality.
In addition to connector/terminal processing, our CNC center provides one-stop service for supporting parts manufacturing including housings and mounting components.
For more details about this slip ring product, please contact JINPAT. We will provide a satisfactory custom solution!
