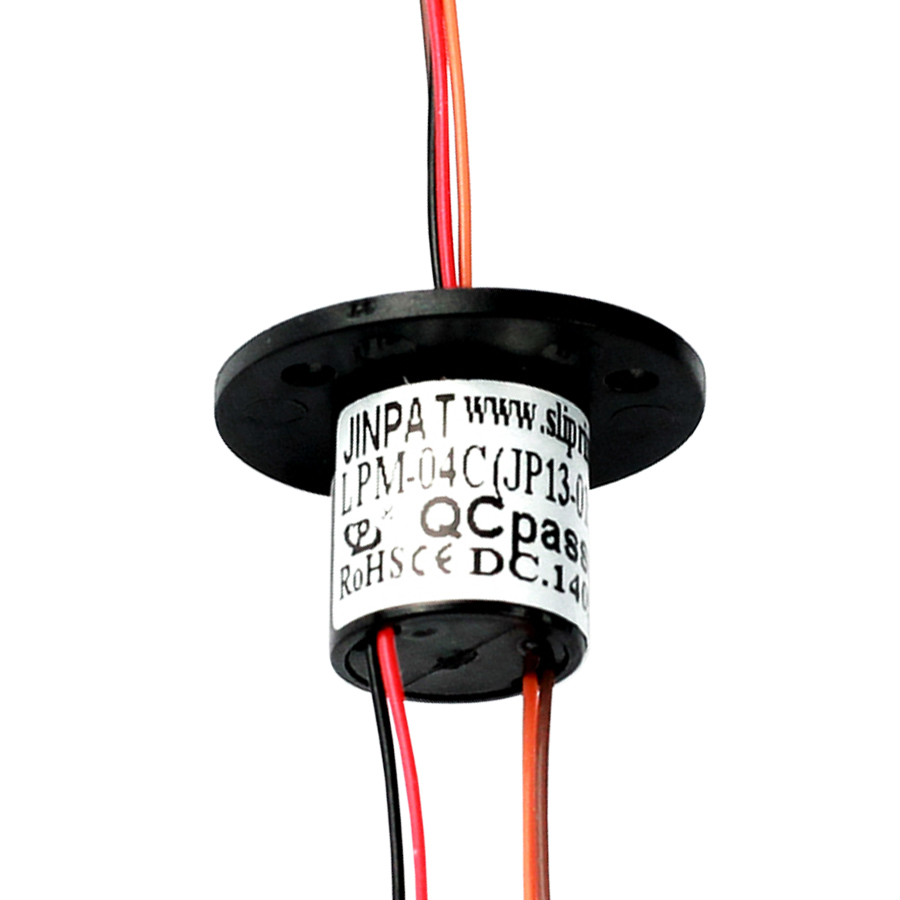

4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Número de circuitos | 4 | Velocidad de trabajo | 200 rpm max |
|---|---|---|---|
| Voltaje | 240VDC/AC | Calificación actual | 2a/4a por cable |
| Material de alojamiento | Aleación de aluminio | Grado de protección | IP65 |
| Material de contacto | Plata a plata | Temperatura de funcionamiento | -30~+80°C |
| Fuente de alimentación máxima | 600A por circuito | Canales de señal | Opcional |
| Conexión del alambre | Opcional | Mantenimiento gratis | 2 años |
| Diseño a prueba de golpes | Sí | Resistencia a baja temperatura | Sí |
| Compatibilidad del codificador | Codificador absoluto disponible | ||
| Resaltar | miniature slip ring for robot arm,4 circuit slip ring 240V,rotary slip ring 200RPM |
||
Descripción de producto
Small Size Capsule Slip Ring With 4 Circuits Digital Signals Transmission, Low Torque
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories, miniature slip ring |
| Number of circuits | 4 |
| Working speed | 200rpm max. |
| Voltage | 240VDC/AC |
| Current rating | 2A/4A per wire |
| Feature | Robot arm, Remote Control |
Product Description
A slip ring is a rotary coupling used to transfer electric current from a stationary unit to a rotating unit. This is accomplished by either:
- Holding the center core stationary while the brushes and housing rotate around it.
- Holding the brushes and housing stationary while the center core is allowed to rotate.
Key Features
- Compact structure with flexible installation
- Reliable and durable for long-term operation
- Aluminum alloy housing with IP65 protection grade - suitable for dusty environments
- Alloy brush with precious contact material (silver to silver) for excellent conductivity and low signal loss
- Shockproof design with operating temperature range: -30°C to +80°C
- Compatible with absolute encoders and potentiometers
- Power supply up to 600 amperes per circuit with optional signal channels and wire connection methods
- Short delivery time with available customized solutions
- Long lifespan with maintenance-free operation for 2 years
Product Benefits
- Compact size for space-constrained applications
- Low friction operation
- Long life and high reliability
- Quick delivery and cost-effective solution
- Easily customizable to specific requirements
- CE and RoHS compliant
Manufacturer Advantages
Welcome to JINPAT Electronics - Providing free custom slip ring solutions to propel your technology forward.
- 12,000+ square meter facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Global partnerships with renowned enterprises and worldwide agents
- 10,000+ successful designs across civil, military, commercial, and industrial applications
- Established in 1996 with over 20 years of production and R&D experience
- Free custom solutions adaptable to various equipment requirements
- Fast delivery times
Typical Applications
