LPM-30B 30 Circuit Slip Ring 1A 240V AC 300 RPM

  • LPM-30B 30 Circuit Slip Ring 1A 240V AC 300 RPM
Lugar de origen Guangdong, China
Nombre de la marca JINPAT
Número de modelo LPM-30B
Cantidad de orden mínima 1
Precio $80

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Número de circuito 30 Calificación actual 1A
Voltaje CA 240V Velocidad de trabajo 0 ~ 300 rpm
Ruido eléctrico ≤15mΩ Material de contacto Metal precioso
Tamaño de cable 30# plateado de cobre chapado UL, teflón Longitud de alambre de plomo Rotor: 250m m; Estator: 250m m
Temperatura de trabajo -20~+60℃ Humedad ≤60%RH
Grado de protección IP54 Tipo accesorios electrónicos
Interfaz de contacto Contactos del oro Color del alambre Con código de color
Rotación Continuo
Resaltar

30 circuit slip ring 1A 240V

,

rotary slip ring 300 RPM

,

LPM-30B slip ring AC
Descripción de producto
LPM Slip Ring - High Precision with Smooth Running for Video Monitoring Rotating Connector
Product Attributes
Attribute Value
Type Electronic Accessories
Circuit Number 30
Current Rating 1A
Voltage 240V AC
Working Speed 0~300 rpm
Product Description
Bargain Price Only in Alibaba
Electrical Slip Ring Description

The LPM-30B miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPM-30B unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Specification
Circuits 30
Current Rating 1A
Voltage 240VAC
Electrical Noise ≤15mΩ
Working Speed 0~300 RPM
Contact Precious metal
Wire Size 30# silver plated copper UL, Teflon
Lead Wire Length Rotor:250mm; Stator:250mm
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP54
Electrical Slip Ring Main Applications
  • Electric devices
  • Medical facility
  • Industrial machinery
  • LED industry
  • Medical equipment
  • Process control equipment
Outline Drawing
LPM-30B 30 Circuit Slip Ring 1A 240V AC 300 RPM 0

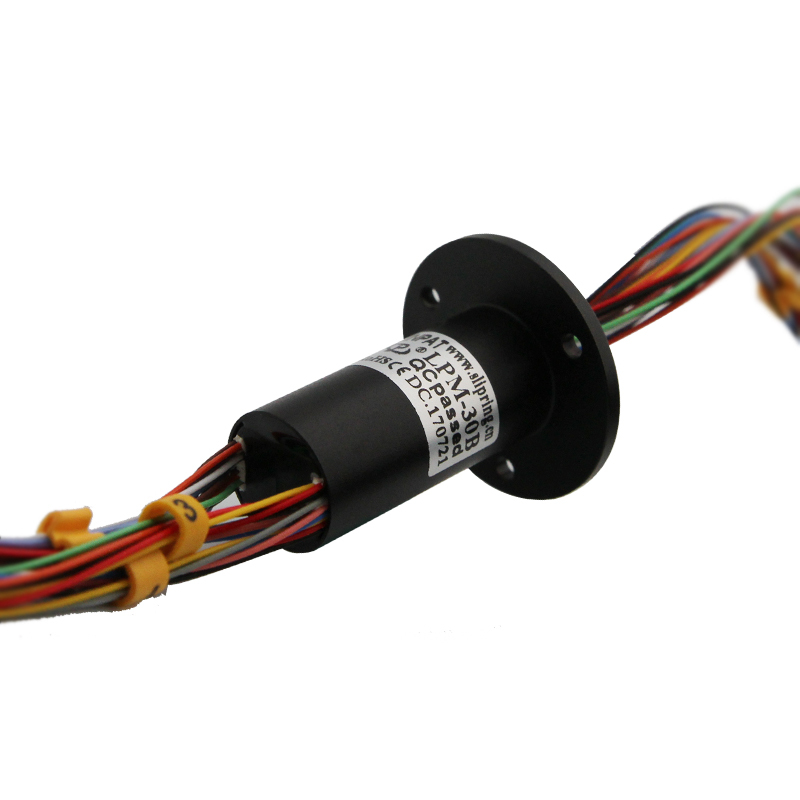

Product Display
LPM-30B 30 Circuit Slip Ring 1A 240V AC 300 RPM 1
Our Advantages
  • With a large plant of over 12,000 square meters and more than 500 employees
  • The company has been awarded the title of "National High and New Technology" and has obtained 69 patents
  • Long-term cooperation with global famous enterprises and agents all over the world
  • With Over 10,000 designs with success in civil, military, commercial and industrial applications
  • Founded in 1996, with more than 20 years of production and R & D experience
  • Providing free custom slip rings solutions, which can be suitable for a variety of equipment
  • Fast delivery
FAQ
1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

3. What kinds of slip rings do we offer
  • Electrical Slip rings (capsule slip ring, through-hole slip ring, miniature slip ring, etc)
  • Signal Slip rings (USB2.0/USB3.0 slip ring, fiber optic rotary joint, high frequency slip ring, etc)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom/modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom/modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
