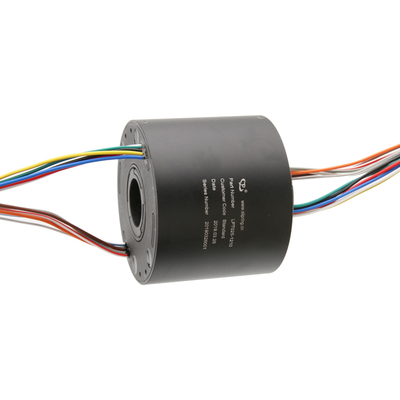

12 Circuit 10A Through Hole Slip Ring 24.5mm Precious Metal Contact

  • 12 Circuit 10A Through Hole Slip Ring 24.5mm Precious Metal Contact
  • 12 Circuit 10A Through Hole Slip Ring 24.5mm Precious Metal Contact
  • 12 Circuit 10A Through Hole Slip Ring 24.5mm Precious Metal Contact
Place of Origin Guangdong, China
Nombre de la marca JINPAT
Model Number LPT025-1210
Minimum Order Quantity 1
Precio $114.50-138

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Current Rating 10A Voltage 240 VAC/DC
Circuit Number 12 Working Speed 0~300 rpm
Hole Diameter 25.4 mm Dielectric Strength 1000V@50Hz between circuits
Insulation Resistance 500MΩ@500VDC Contact Material Precious metal
Housing Material Aluminum alloy Wire Length 300mm (rotor), 300mm (stator)
Working Temperature -20~+60℃ Humidity ≤60%RH
Protection Grade IP50 Max Voltage 10000 volts
Max Current 5000 amps
Resaltar

10A through hole slip ring

,

24.5mm slip ring with precious metal

,

12 circuit slip ring with warranty
Descripción de producto
Through Hole Slip Ring - 12 Circuits 10A with 24.5mm Hole Diameter
Precious Metal Contact for Reliable Performance
Key Specifications
Attribute Value
Type Electronic Accessories
Current Rating 10A
Voltage 240 VAC/DC
Circuit Number 12
Working Speed 0-300 rpm
Product Overview

LPT slip rings are through-hole slip rings designed for applications requiring rotation while transmitting power or signals. The center hole can accommodate drive shafts or gas-liquid passages, with optional integration of high frequency, fiber, encoder, waveguide, and other joints.

Special promotional pricing available exclusively through our Alibaba store.

LPT025-1210 Slip Ring Features
  • 240V operating voltage capacity
  • 300rpm maximum rotating speed
  • Precious metal contacts for reliable connection
  • Durable aluminum alloy housing
  • Extended service life
  • Custom solutions available
  • Prompt delivery options
Technical Specifications
Circuits 12
Current Rating 10A
Voltage 240 VAC/DC
Dielectric Strength 1000V@50Hz between circuits
Insulation 500MΩ@500VDC
Hole Diameter 25.4 mm
Working Speed 0-300 RPM
Contact Material Precious metal
Housing Material Aluminum alloy
Wire Length 300mm (rotor), 300mm (stator)
Working Temperature -20°C to +60°C
Humidity ≤60%RH
Protection Grade IP50
Applications
  • Semiconductor handling systems
  • Industrial machinery
  • Packaging/wrapping machinery
  • Medical equipment
  • Rotary index tables
  • Cable reels
Product Images

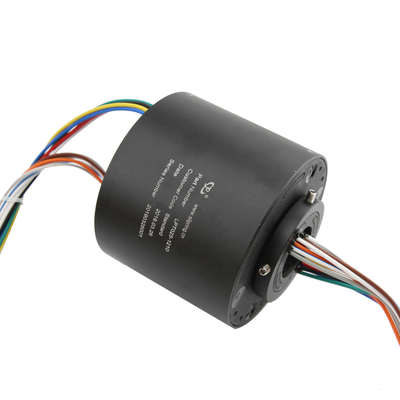

12 Circuit 10A Through Hole Slip Ring 24.5mm Precious Metal Contact 0

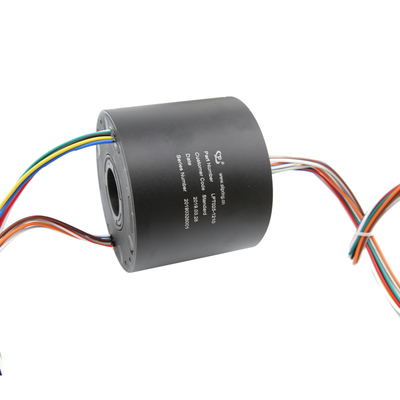

12 Circuit 10A Through Hole Slip Ring 24.5mm Precious Metal Contact 1
Manufacturer Advantages
  • 12,000 square meter production facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise with 69 patents
  • Long-term partnerships with global industry leaders
  • Over 10,000 successful designs across civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Free custom slip ring solutions tailored to your equipment requirements
  • Fast delivery options available
Frequently Asked Questions
What do we do?

We specialize in developing, designing, and manufacturing high quality slip rings, offering comprehensive solutions for rotating systems.

What is a slip ring?

A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It eliminates damage-prone dangling wires and improves mechanical performance in rotating systems.

What kinds of slip rings do we provide?
  • Electrical Slip Rings (capsule, through-hole, miniature)
  • Signal Slip Rings (USB, fiber optic, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?

Selection requires details about your application's operating parameters including circuits, voltage/amps per circuit, speed, and mounting type. Contact our engineers for assistance with custom solutions.

Do you provide custom slip rings?

Yes, our engineering team develops custom solutions tailored to your specific requirements. Contact us to discuss your application needs.
